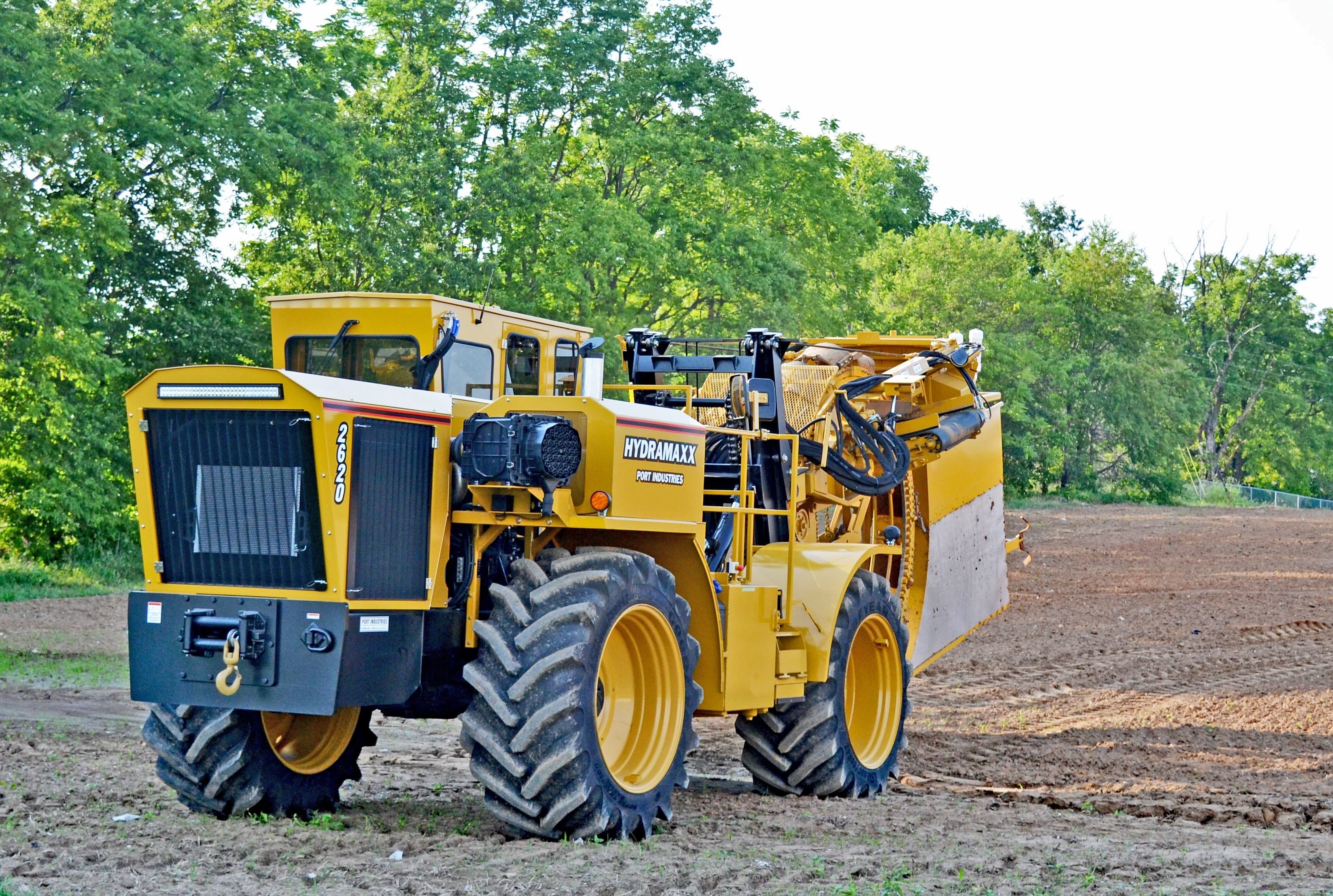

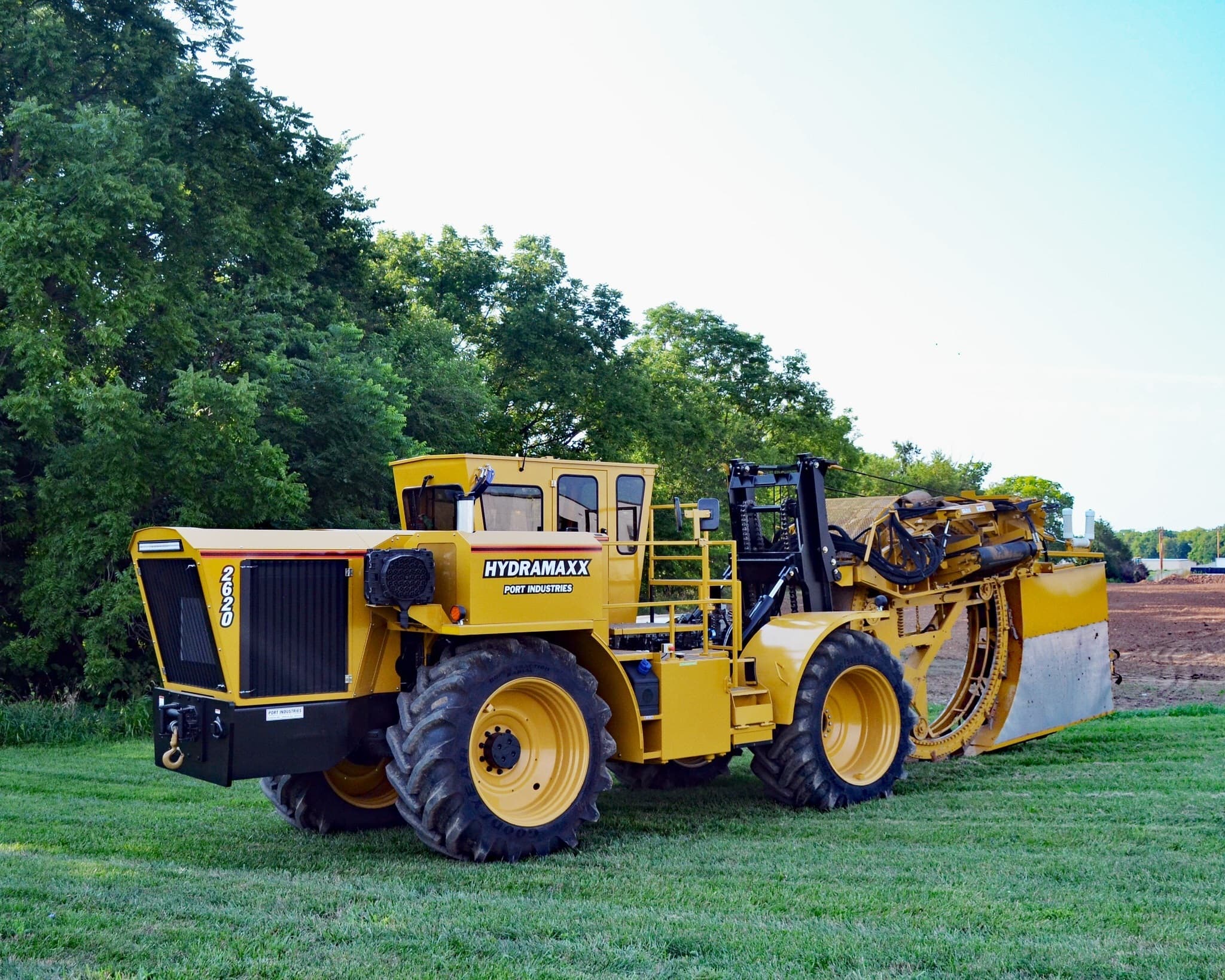

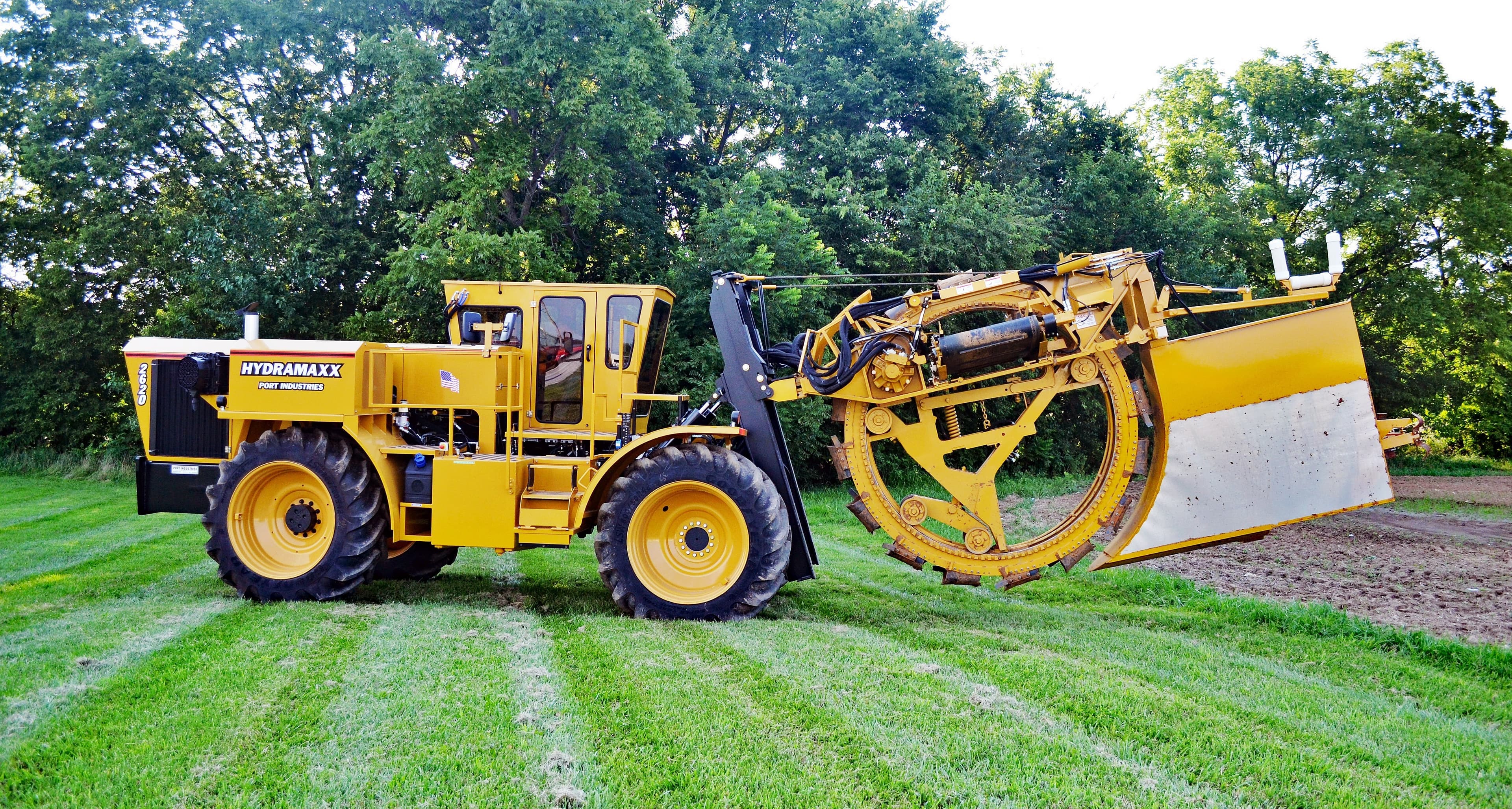

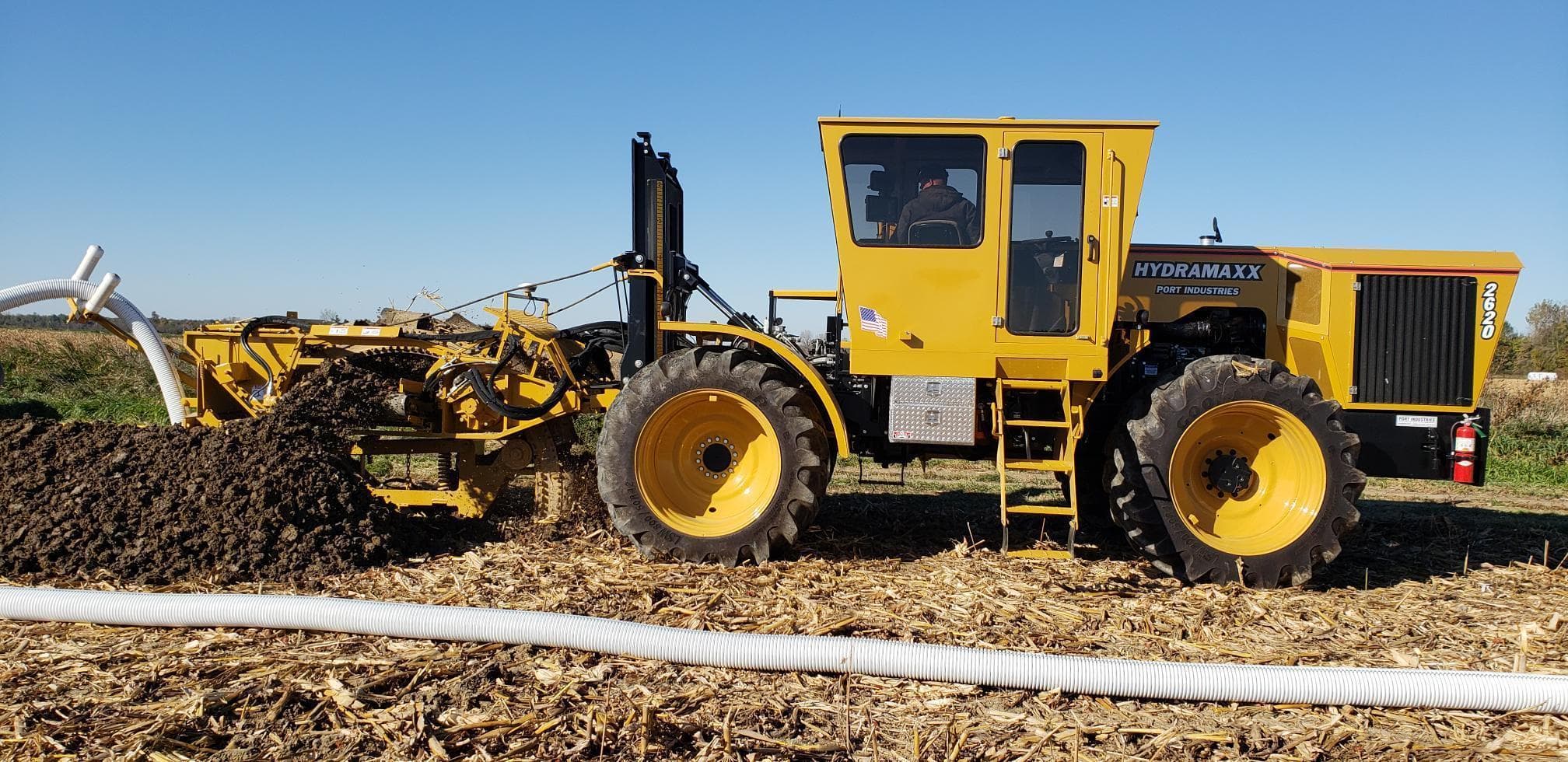

Hydramaxx 2620

Cummins Tier IV Final Engine, 350 HP

Spacious Double Entry Cab Standard with Heat and Air Conditioning

Auto Leveling

7'-3" Digging Depth

16" Buckets, 20" Option

Digging Widths 22"-40"

36" Wide, 8' Long Conveyor, 10' Option

More Information Below

• TRACTOR UNIT

  • Ground Clearance: Transmission 27" - Uprights 17"
  • Wheel Base: 12'10"
  • Front Axle: Outboard Planetary Limited Slip
  • Rear Axle: Inboard Planetary w/ Hydraulic Diff Lock
  • Track Width: 92"
  • Transmission: Four Speed with Two Speed Shift on the Go
  • Auto/Manual Leveling: 8° Right and 8°Left
  • Auto Load Control: Adjustable Set Point
  • Hydraulic Differential Lock: Rear Axle - Hyd. Applied
  • Brakes: Independent Inboard Rear Axle - Hyd Applied

• DIGGING WHEEL

  • Digging Wheel Diameter: 97" Inside/126" Outside
  • Construction: 3/4" x 6" Rims with 1/2" x 3" Attaching Ring
  • Front Center Pivot: 7° Left and 7° Right

• CONVEYOR
  • Length: 8' (Standard) 10' (Optional)
  • Width: 36"
  • Left or Right discharge w/ 36" Shift

• HYDRAULIC SYSTEM
  • 150 Gallon Capacity
  • Pressure Filtration

Machine is available for demonstrations.

Call Port Industries for all your drainage equipment needs.
