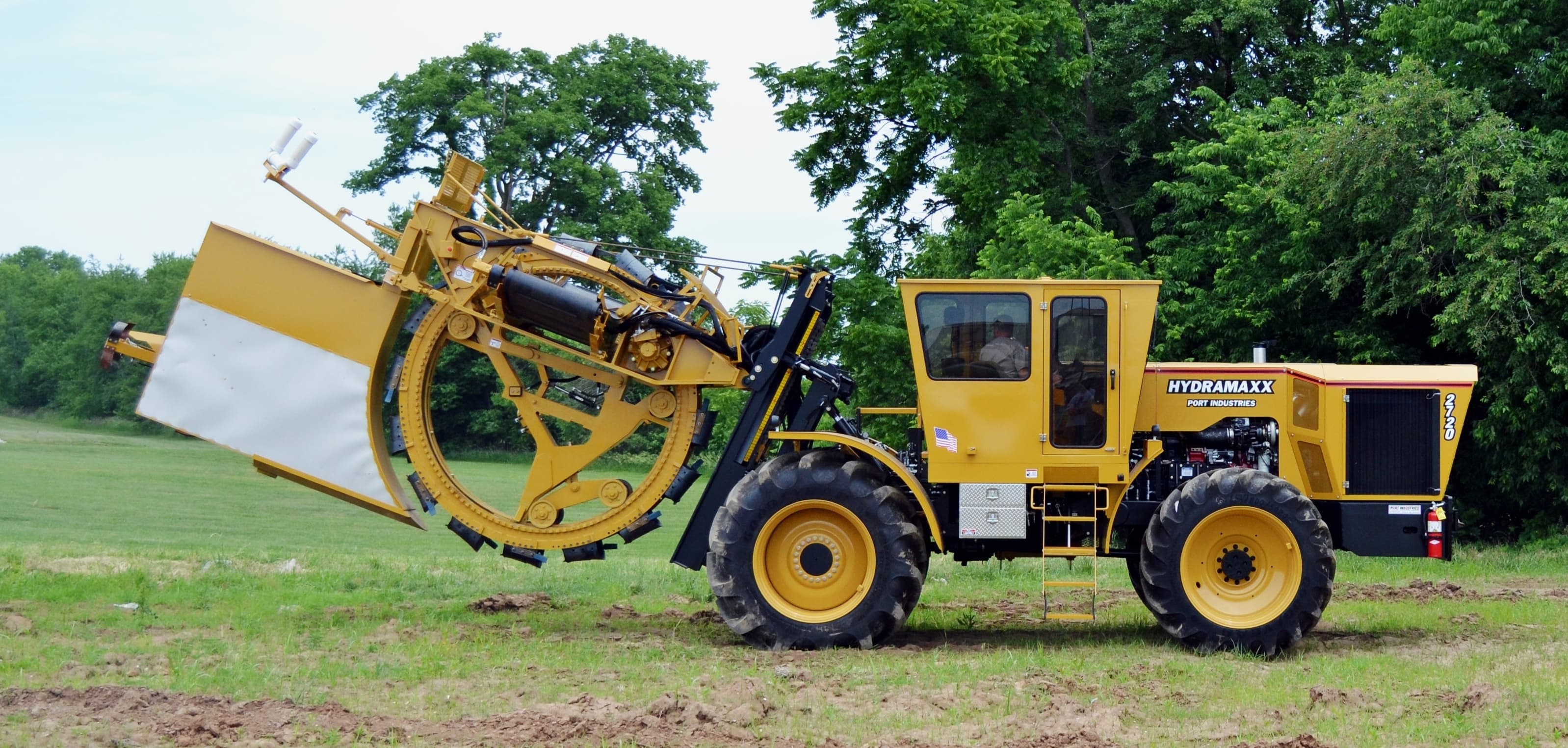

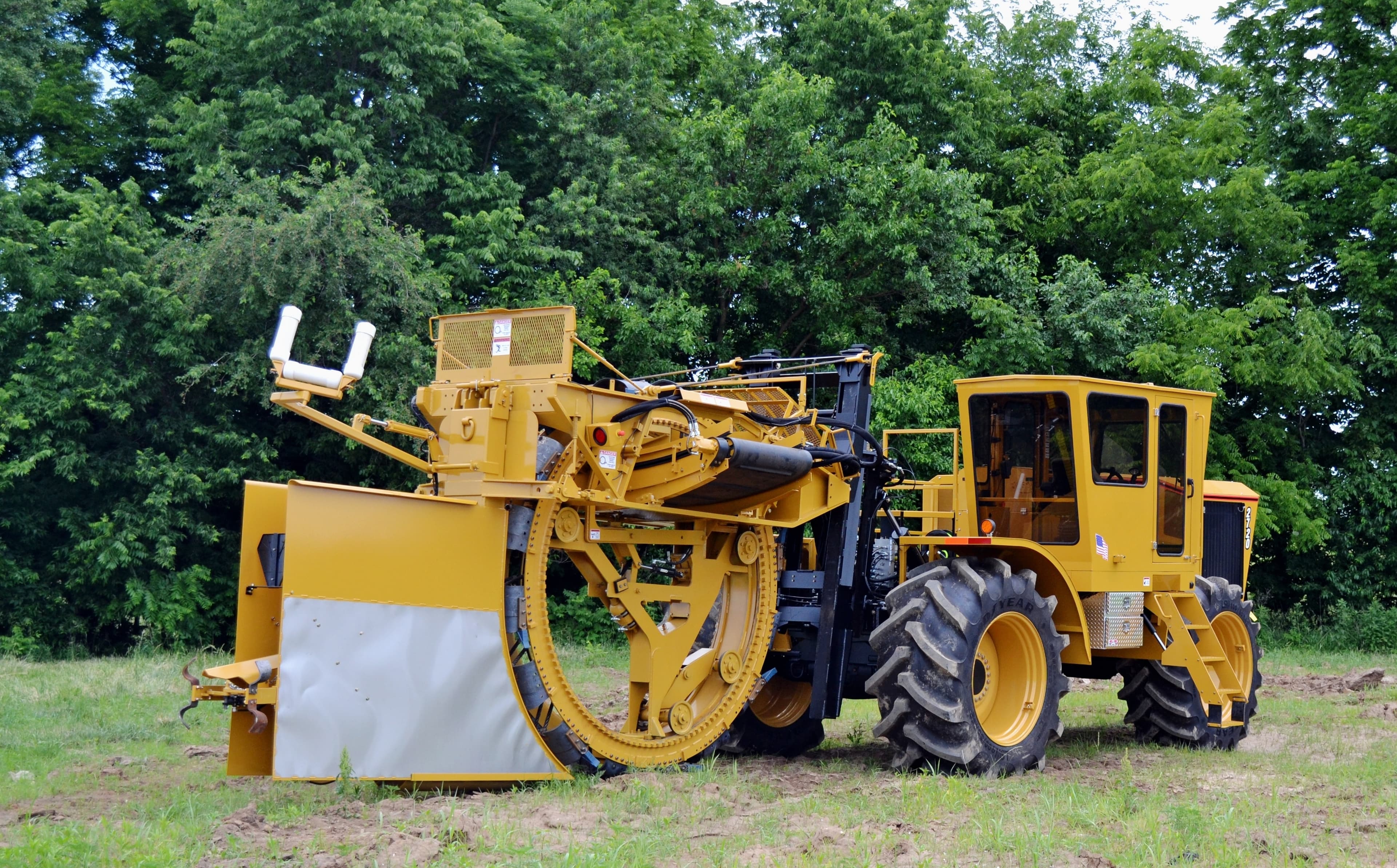

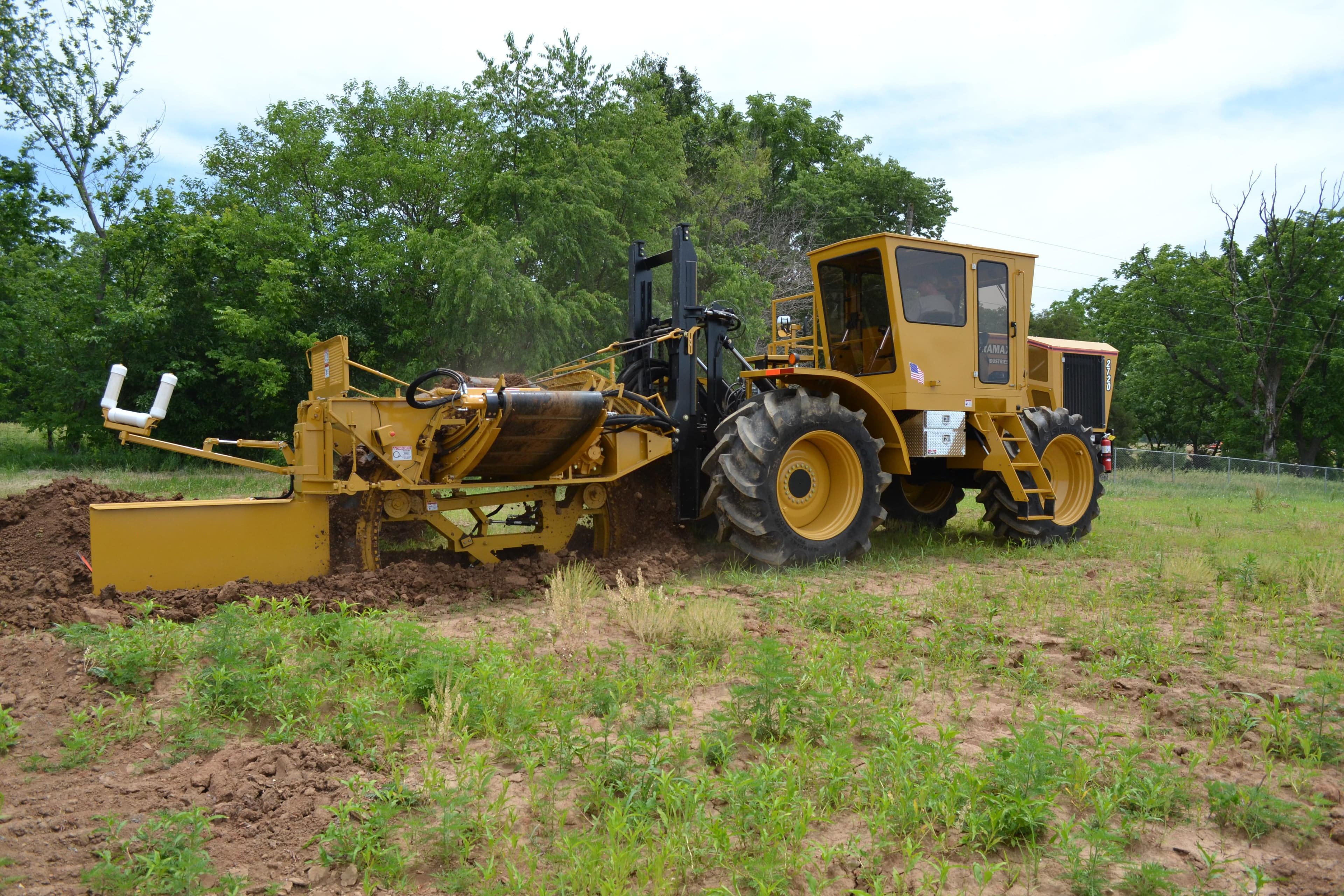

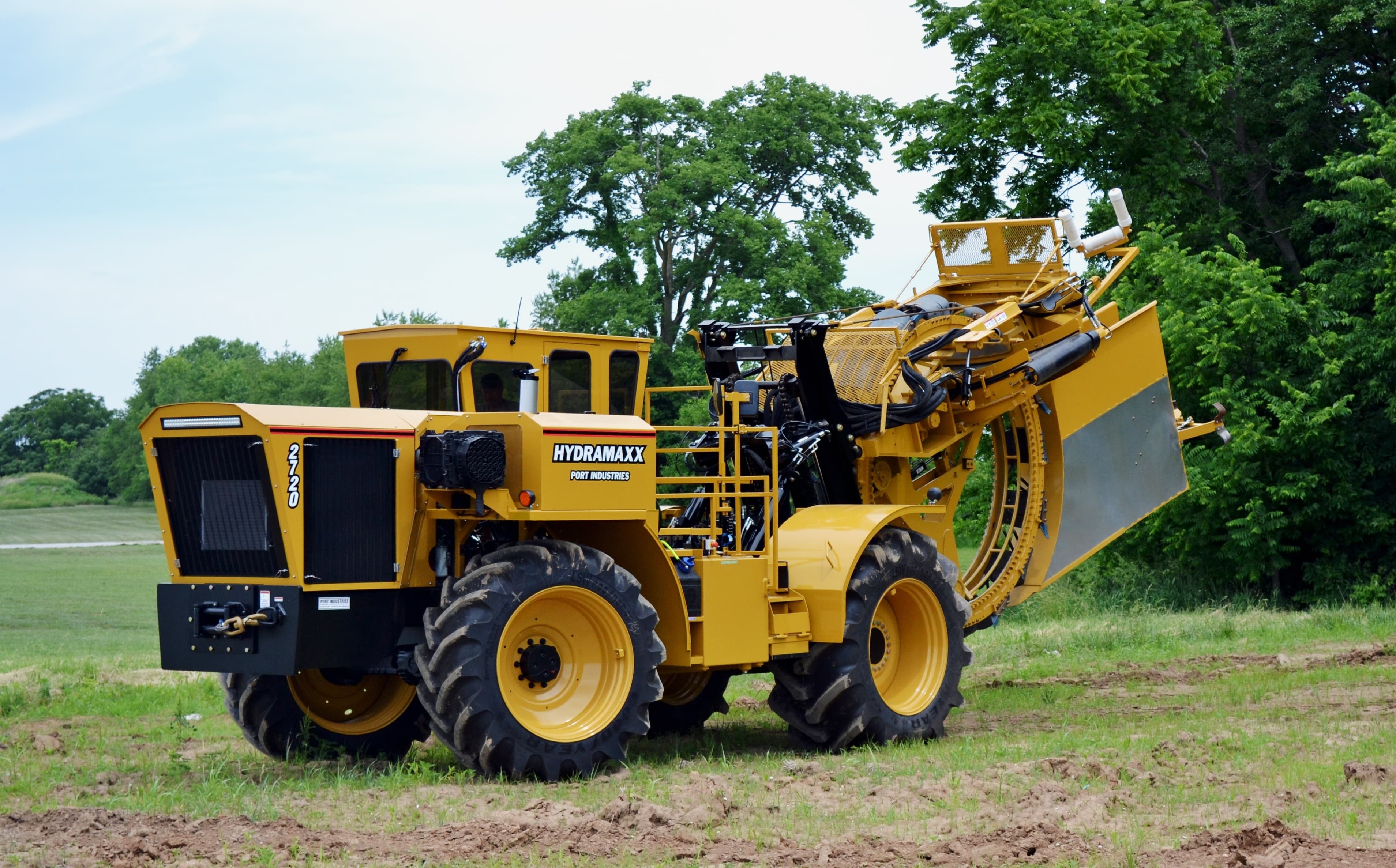

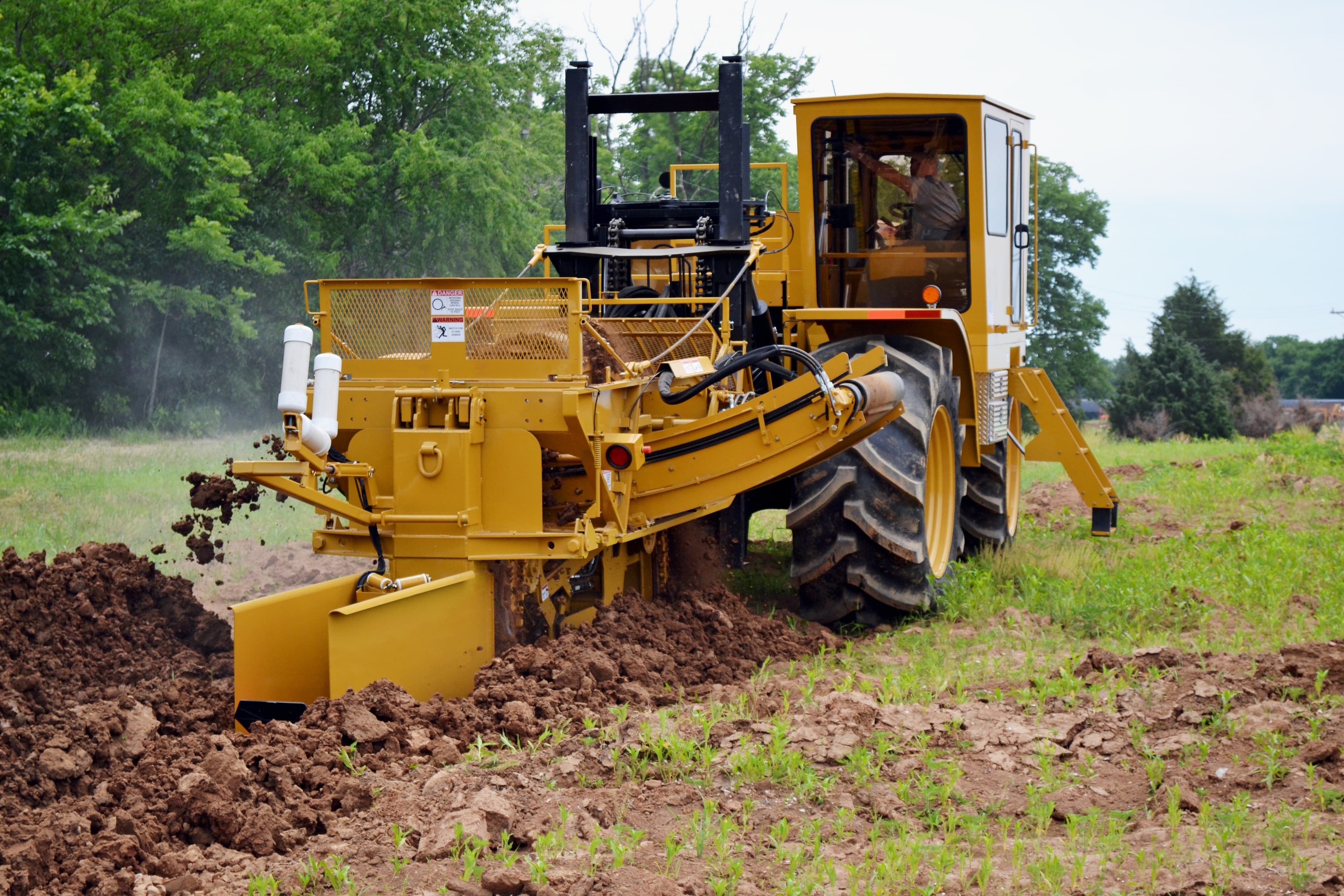

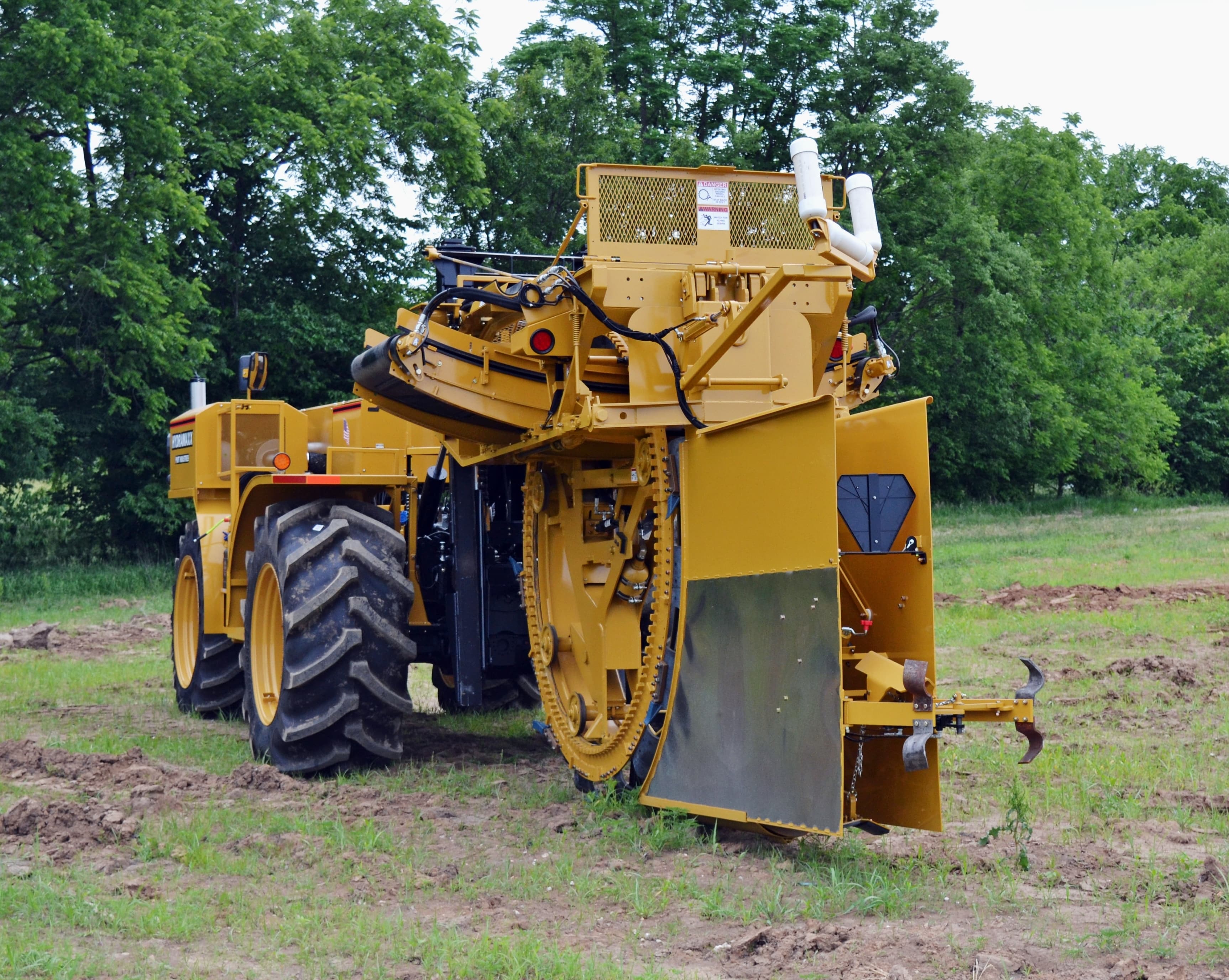

Hydramaxx 2720

Cummins Tier IV Final Engine, 430 HP

Spacious Double Entry Cab Standard with Heat and Air Conditioning

Auto Leveling

7'-3" Digging Depth

16" Buckets, 20" or 26" Option

Digging Widths 22"- 50"

36" Wide, 8' Long Conveyor, 10' Option

More Information

• TRACTOR UNIT

  • Ground Clearance: Transmission 27" - Uprights 17"
  • Wheel Base: 12'10"
  • Front Axle: Outboard Planetary Limited Slip
  • Rear Axle: Inboard Planetary w/ Hydraulic Diff Lock
  • Track Width: 96"
  • Transmission: Four Speed with Two Speed Shift on the Go
  • Auto/Manual Leveling: 8° Right and 8°Left
  • Auto Load Control: Adjustable Set Point
  • Hydraulic Differential Lock: Rear Axle - Hyd. Applied
  • Brakes: Independent Inboard Rear Axle - Hyd Applied
• DIGGING WHEEL

  • Digging Wheel Diameter: 97" Inside/126" Outside
  • Construction: 3/4" x 8" Rims with 1/2" x 3" Attaching Ring
  • Digging Depth: (0-7'3")
  • Standard Cutting Arrangement: 16" Buckets w/ 22" Center Cutters
  • Digging Width: 20"-50"
  • Hydraulic upright and digging wheel pivot: 14.5° Left and 14.5° Right
  • Ground Clearance for transport: Buckets 36"
• CONVEYOR
  • Length: 8' (Standard) 10' (Optional)
  • Width: 36"
  • Left or Right discharge w/ 36" Shift
• HYDRAULIC SYSTEM
  • 150 Gallon Capacity
  • Pressure Filtration

Machine is available for demonstrations.

Call Port Industries for all your drainage equipment needs.
